SEE CHART BELOW for LIST of PUMPS The TImer will work on: as a general rule the timer will work on any pump assuming the GPH rating is 1200 or less and the current is 5.0Amps or less. The timer will not work on any 1500GPH, 1600GPH, and 2000 GPH pumps. |
PUMP CURRENT RATINGS:
| RULE | ||
| Model Name / Number | gph rating | Amps at 12.0 volts |
| C-Series Pro 200C | 360 | 1.9 |
| C-Series Pro 201C | 500 | 2.1 |
| C-Series Pro 203C | 700 | 2.8 |
| C-Series Pro 200STC | 360 | 1.9 |
| C-Series Pro 201STC | 500 | 2.1 |
| C-Series Pro 203STC | 700 | 2.8 |
| C-Tournament Series 401C | 500 | 2.1 |
| C-Tournament Series 403C | 800 | 2.8 |
| C-Tournament Series 405C | 1000 | 3.3 |
| STC-Tournament Series 401STC | 500 | 2.1 |
| STC-Tournament Series 403STC | 800 | 2.8 |
| STC-Tournament Series 405STC | 1000 | 3.3 |
| Seacock mounted pumps 200FC | 360 | 1.9 |
| Seacock mounted pumps 201FC | 500 | 2.1 |
| Seacock mounted pumps 201FAA | 500 | 2.1 |
| Seacock mounted pumps 203FC | 700 | 2.8 |
| Seacock mounted pumps 205FC | 1100 | 3.3 |
| Seacock mounted pumps 205FAA | 1100 | 3.3 |
| Dual Port Cartridge 200FCDP | 360 | 1.9 |
| Dual Port Cartridge 201FCDP | 500 | 2.1 |
| Dual Port Cartridge 203FCDP | 700 | 2.8 |
| Dual Port Cartridge 205FCDP | 1100 | 3.3 |
| Transom Mounted Aerator 24TB | 360 | 1.9 |
| Transom Mounted Aerator 25DTB | 500 | 2.1 |
| Transom Mounted Aerator 20RTB | 800 | 2.8 |
| Transom Mounted Aerator 27DTB | 1100 | 3.3 |
| Oxygenator Systems Model 250 | 500 | 2.1 |
| Oxygenator Systems Model 251 | 800 | 2.8 |
| Oxygenator Systems Model 252 | 1100 | 3.3 |
| SHURFLOW | ||
| Model Name / Number | gph rating | Amps at 12.0 volts |
| Pirana 357-013-00 | 600 | 2.0 |
| Pirana 357-013-10 | 600 | 2.0 |
| Pirana 357-113-00 | 800 | 4.5 |
| Pirana 357-113-10 | 800 | 4.5 |
| Pirana 357-103-00 | 1100 | 4.5 |
| Pirana 357-103-10 | 1100 | 4.5 |
| Pirana 357-012-00 | 600 | 2.0 |
| Pirana 357-012-10 | 600 | 2.0 |
| Pirana 357-112-00 | 800 | 4.5 |
| Pirana 357-112-10 | 800 | 4.5 |
| Pirana 357-102-00 | 1100 | 4.5 |
| Pirana 357-102-10 | 1100 | 4.5 |
| Pirana 357-014-00 | 600 | 2.0 |
| Pirana 357-014-10 | 600 | 2.0 |
| Pirana 357-114-00 | 800 | 4.5 |
| Pirana 357-114-10 | 800 | 4.5 |
| Pirana 357-104-00 | 1100 | 4.5 |
| Pirana 357-104-10 | 1100 | 4.5 |
| Bait Sentry 1700-000-030 | 500 | 1.75 |
| Bait Sentry 1700-001-030 | 500 | 1.75 |
| Bait Sentry 1700-010-030 | 800 | 3.5 |
| Bait Sentry 1700-011-030 | 800 | 3.5 |
| Bait Sentry 1700-020-030 | 1100 | 3.75 |
| Bait Sentry 1700-021-030 | 1100 | 3.75 |
| ATTWOOD | ||
| Model Name / Number | gph rating | Amps at 12.0 volts |
| T500 4252-7 | 500 | 1.8 |
| T500 4256-7 | 500 | 1.8 |
| T500 4640-7 | 500 | 1.8 |
| T500 4640-1 | 500 | 1.8 |
| T500 4640MP1 | 500 | 1.8 |
| T500 4641-1 | 500 | 1.8 |
| T500 Replacement 4620 | 500 | 1.8 |
| T800 4650-7 | 800 | 3.3 |
| T800 4650-1 | 800 | 3.3 |
| T800 4650MP1 | 800 | 3.3 |
| T800 4651-1 | 800 | 3.3 |
| T800 4651CIG1 | 800 | 3.3 |
| T800 Replacement 4622-6 | 800 | 3.3 |
| T800 4672-1 | 800 | 3.3 |
| T800 4672-7 | 800 | 3.3 |
| T800 4670-1 | 800 | 3.3 |
| T800 4670-7 | 800 | 3.3 |
| T800 Replacement 4622-1 | 800 | 3.3 |
| T1200 4660-7 | 1200 | 3.5 |
| T1200 | 1200 | 3.5 |
| T1200 | 1200 | 3.5 |
| T1200 | 1200 | 3.5 |
| T1200 | 1200 | 3.5 |
| T1200 Replacement 4624 | 1200 | 3.5 |
| JOHNSON / MAYFAIR | ||
| Model Name / Number | gph rating | Amps at 12.0 volts |
| In-Well Aerator 34024 | 500 | 2.0 |
| Twin Port 48503 | 550 | 2.5 |
| Twin Port 48703 | 750 | 3.5 |
| Twin Port 48903 | 950 | 4.0 |
| Twin Port 48103 | 1250 | 4.5 |

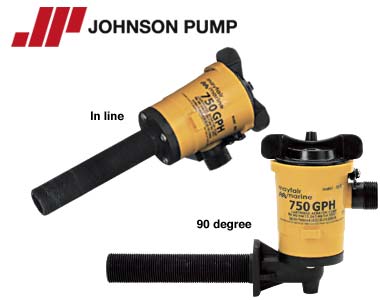

| Cartridge Aerator 28503 | 500 | 2.0 |
| Cartridge Aerator 38503 | 500 | 2.0 |
| Cartridge Aerator 28703 | 750 | 3.0 |
| Cartridge Aerator 38703 | 750 | 3.0 |
| Cartridge Aerator 28502 | 500 | 2.0 |
| Cartridge Aerator 38502 | 500 | 2.0 |
| Cartridge Aerator 28702 | 750 | 3.0 |
| Cartridge Aerator 38702 | 750 | 3.0 |
